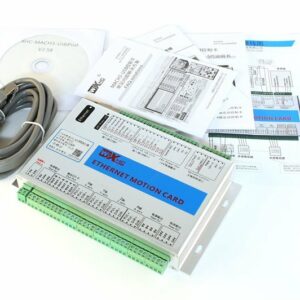

XHC Controller 4 Axle voor MACH3
€152,85
Uitverkocht
Beschrijving
|
|
Parameter Description |
|
|
Axis output control: |
Drive Current |
Isolated open collector output; 5V,20mA |
|
Drive |
Pulse + direction output |
|
|
Output frequency |
400KHZ |
|
|
axes |
MK4: 4-axis |
|
|
Isolation Voltage |
3.5KV |
|
|
Spindle inverter output: 3 types of output modes |
Analog voltage output |
0-10V |
|
PWM output |
5V,1KHZ.Duty; 0-100% |
|
|
Pulse + direction output |
5V,15HZ to 4KHZ |
|
|
8 IO output |
Drive Current |
Isolation;50mA,25V |
|
Isolation Voltage |
3.5KV |
|
|
16 IO input |
Input Current |
Isolated inputs,5mA,maximum voltage 25V |
|
Isolation Voltage |
3.5KV |
|
|
USB interface |
Complies with USB 2.0 standard |
|
