NEMA 23 Closed Loop 3.0Nm set + 5M cables (2 phase)

Specifications driver:

• Voltage input range: DC20V~50V
• Max peak current: 6.0A
• Full subdivision range: Default 400/rev, any subdivision (200~51200) can be set through debugging panel.
• Pulse form: pulse + direction, CW/CCW
• Pulse response frequency: 0~200kHz
• Plug & Play, no tuning required for most applications
• With protection functions such as over voltage,
  overcurrent, tracking error out of tolerance, etc

Included:

• 3.0Nm NEMA 23 Closed Loop motor
• LCDA257S driver

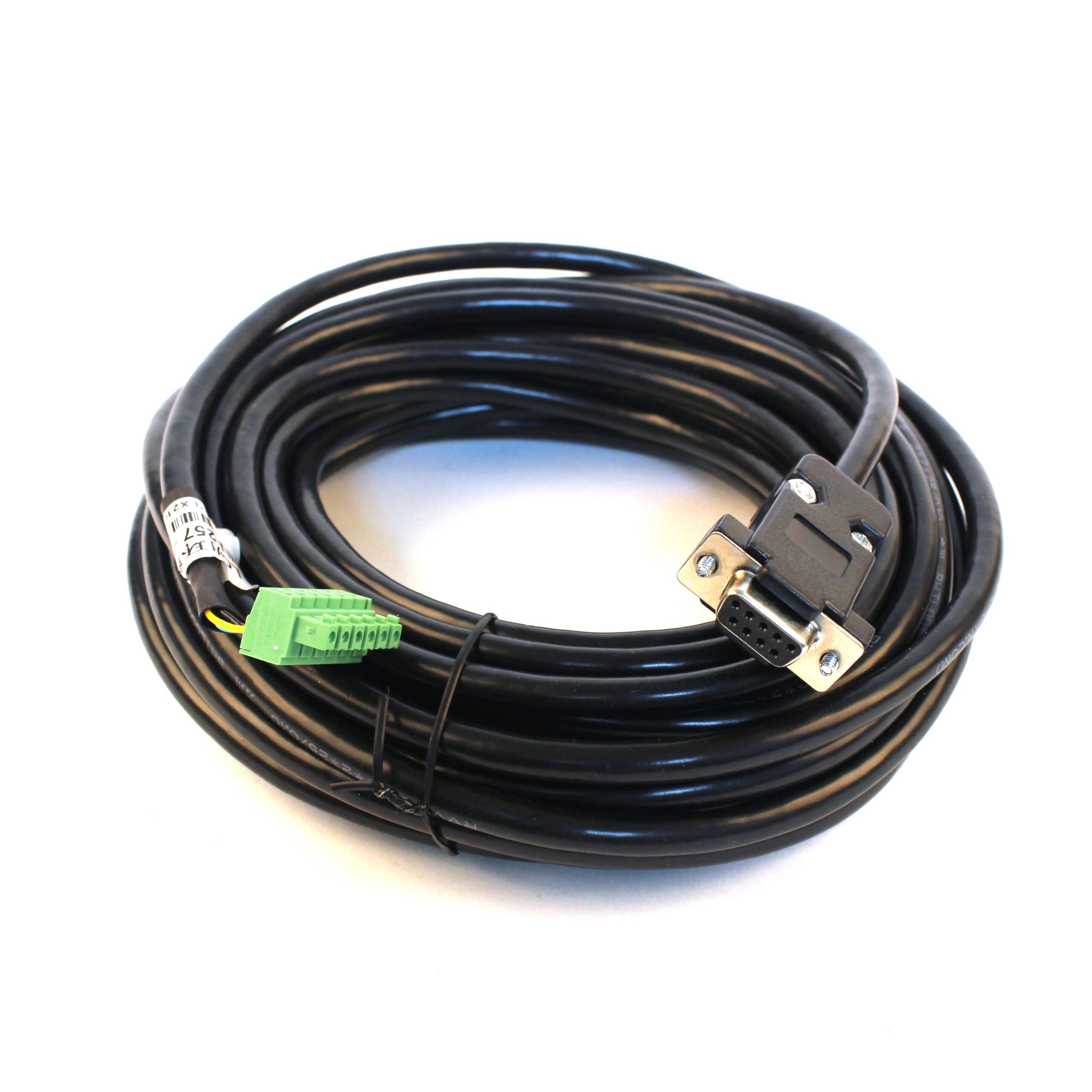

• 5 meter encoder cable

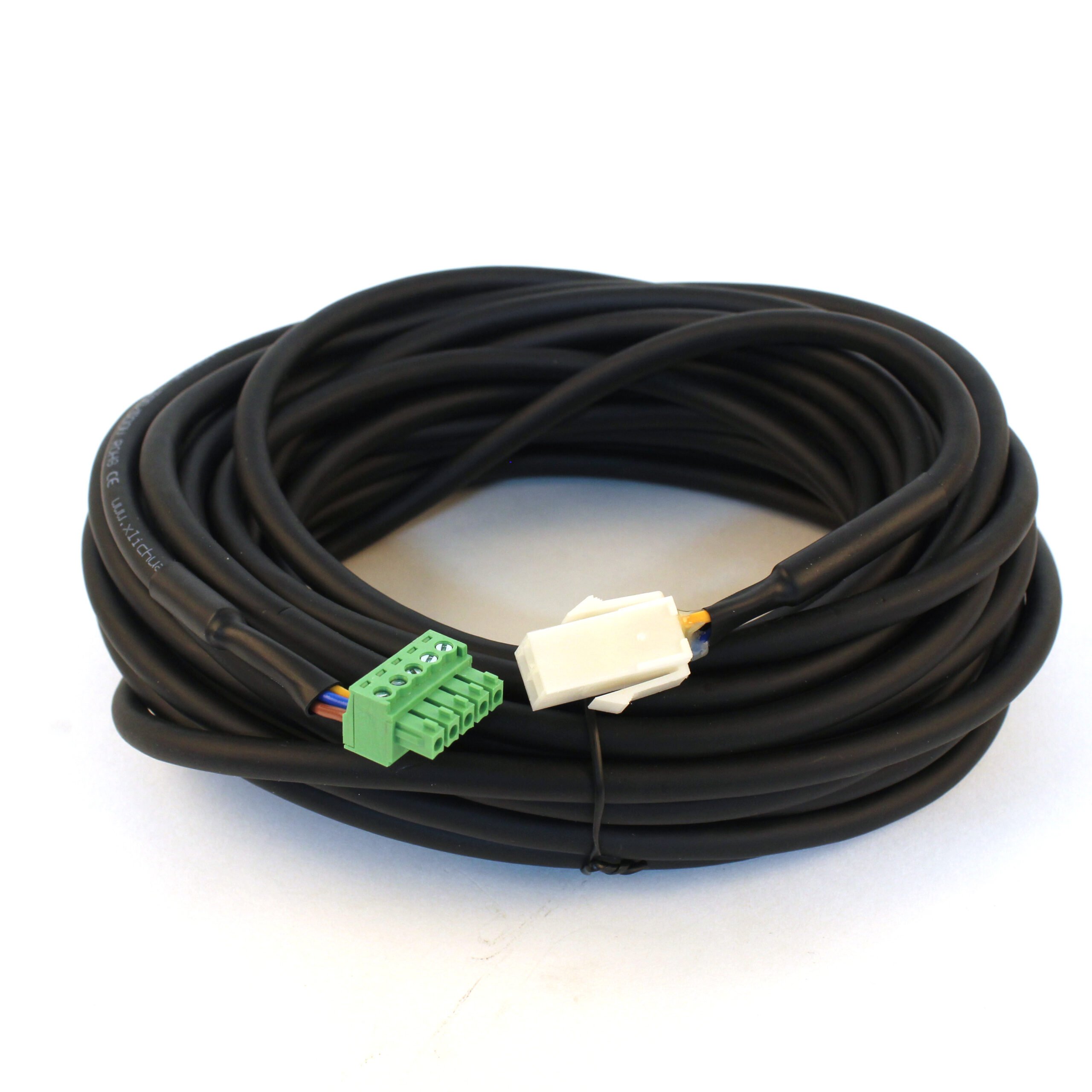

• 5 meter motor cable

Manual:

LICHUAN English user manual of LCDA257S.PDF
