NEMA 34 Closed Loop 12.0Nm set + 5M cables (2 phase)

Specifications Driver:

• Voltage input range: DC30V~100V / AC20V~70V
• Max peak current: 8.0A
• Full subdivision range: Default 400/rev, any subdivision (200~51200) can be set through debugging panel.
• Pulse form: pulse + direction, CW/CCW
• Pulse response frequency: 0~200kHz
• Plug & Play, no tuning required for most applications
• With protection functions such as over voltage,
  overcurrent, tracking error out of tolerance, etc

Included:

• 12.0Nm NEMA 34 Closed Loop motor
• LCDA86H driver

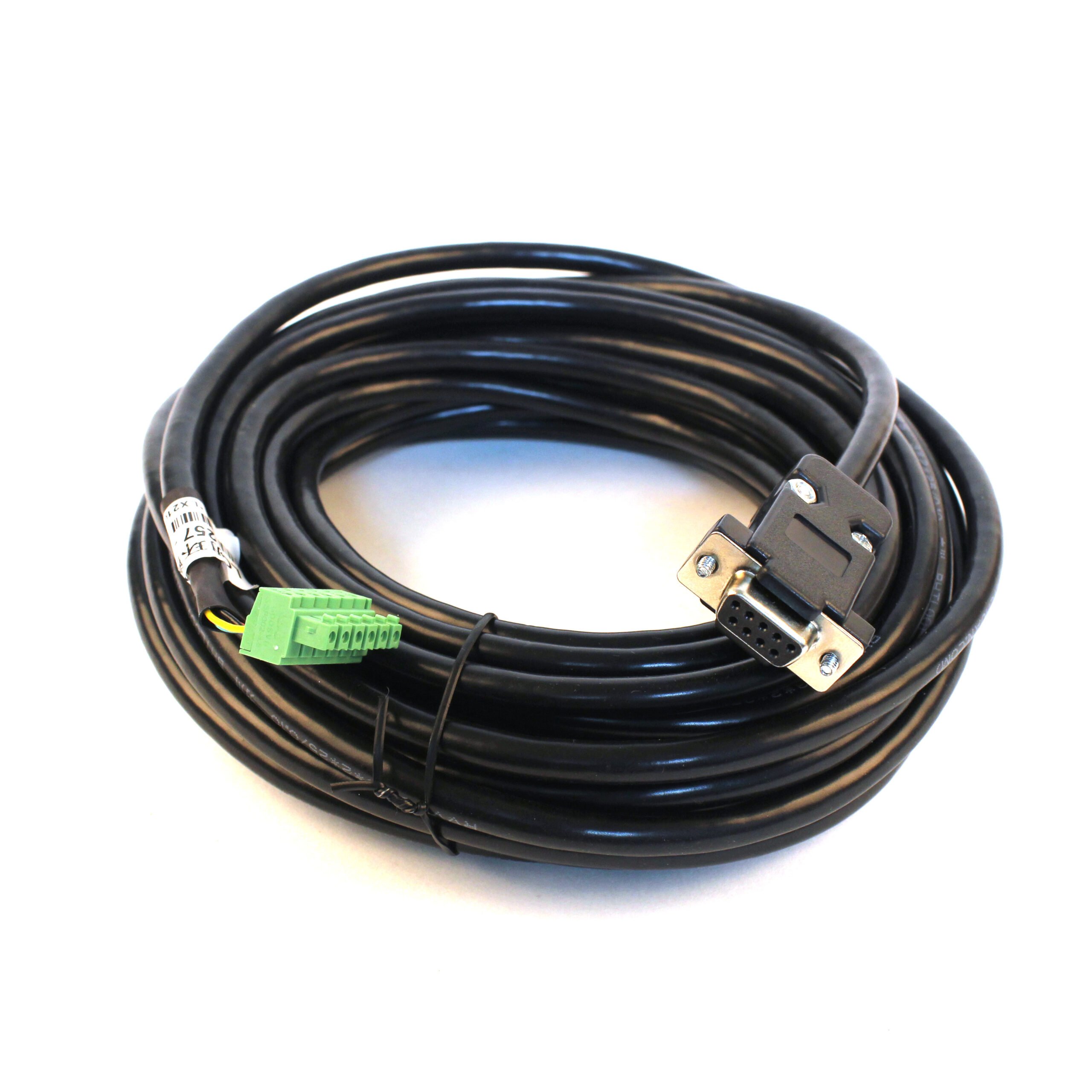

• 5 Meter encoder cable

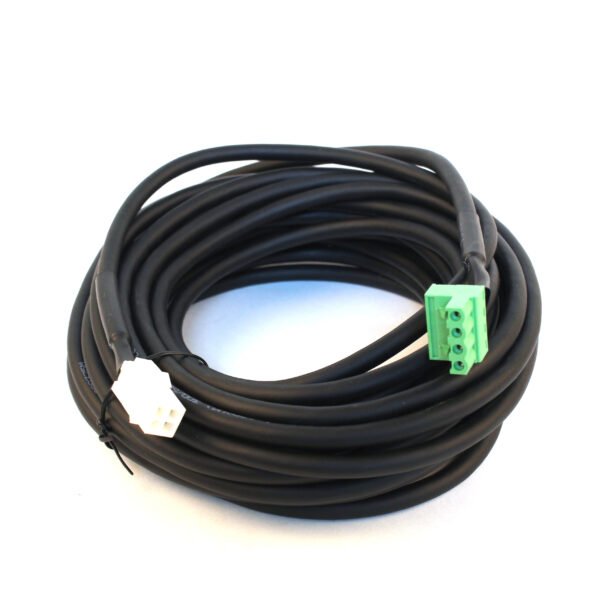

• 5 Meter motor cable

Manual:

LCDA86H user manual.PDF
