Home CNC Besturingen Centroid (Acorn-Allin1DC-Oak) Acorn/OAK/ALLin1DC Aanstuurkaart Oak CNC Controller kit
Servo set 2.0Kw (SHAFT 19MM) 130ST A6 230V + 5M kabel €419,95
Back to products
Tool Setter Wired PNP €135,00
Click to enlarge

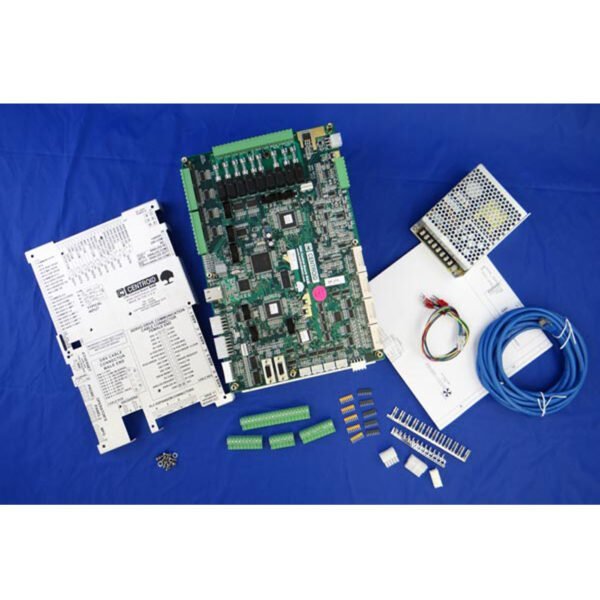

Oak CNC Controller kit

€1.420,00

Voorraad:
op voorraad

Zet op verlanglijst
Categorie: Acorn/OAK/ALLin1DC Aanstuurkaart
Share:
  • Beschrijving
Beschrijving

Levertijd vijf werkdagen.



-Oak controller
– Voeding
– Aansluitset
– 15′ afgeschermde Ethernet-kabel
– Centroid CNC12 CNC-frees- en draaibank GRATIS versie van software, zie hieronder:
– Typische CNC-bewerkingsmachines voorgeprogrammeerde PLC-ingangen en -uitgangen
– Frees en draaibank conversatie programmeersoftware
– Installatie- en bedieningshandleidingen PDF
– Bedradingsschema
– Zelfbediening CNC-ondersteuning voor doe-het-zelvers via het Centroid Community CNC Forum, dat door een Centroid-technicus wordt gecontroleerd en onderhouden.
– Centroid CNC12 “GRATIS” versie van CNC-software. (Koop Pro of Ultimate voor extra functieset, zie hieronder.)

  • Built in Motion Control CPU
  • Mill and Lathe CNC software
  • Reliable Ethernet communication with CNCPC
  • Runs on Windows 10
  • Compatible with CAD/CAM systems
  • Runs Standard G & M Codes (see list in operator manuals)
  • 4 Mb G code program size (unlimited optional)
  • True G-code back plot graphics w cutter comp moves
  • 2000 line accell decell look ahead
  • 1200 blocks per second
  • Feed rate override operator variable 0-200% at 1% increments
  • Plug and Play dedicated MPG port
  • Rapid rate override
  • Spindle Control. on/off cw/cw, speed w/override
  • 12-bit analog output 0-10 VDC for VFD control
  • 16 optically isolated inputs, user configurable
  • 9 fused relay outputs, user configurable
  • Centroid Operator control pendant compatible
  • Six Encoder Inputs
  • Single 24 vdc logic power input
  • Spindle Encoder RPM display
  • Simple Menu Driven Operator Interface
  • Stop and Restart Job at any point
  • Tool Check, Jog and Restart at any point
  • Cutter Compensation
  • Conductive touch probe compatible
  • Kinematic touch probe compatible
  • Dedicated Touch Probe port
  • 6 WCS G54 – G59 (12 more optional)
  • 4th axis software (both G code and Conversational)
  • Lube Pump control (user configurable to match pump type)
  • MDI mode with recent command memory
  • Programmable Auxiliary Function keys
  • Multiple Language Support
  • Stock PLC programs
  • User editable PLC programming
  • Part counter, Time, Time estimation
  • Simple Future Software updates available
  • G code editor
  • Utility Menu
  • Backup and Restore CNC config
  • Message Display and Logs
  • True Closed Loop CNC operation
  • Unlimited Program Storage (only limited by hard drive size)
  • Large easy to read DRO display
  • Menu Driven Part setup
  • Menu Driven Tool setup
  • Menu driven machine configuration setup
  • Fill in the blank Setup Menus
  • Run Menu
  • CNC control configuration menu
  • Restart Job Automatically
  • Any axis can be linear or rotary axis
  • G-code smoothing (user adjustable)
  • Auto Home to switch, user selectable direction per axis
  • Jog to Home or Home to Marks
  • Software Travel Limits (+ and – directions)
  • User configurable Slow, Fast, Max rates
  • User configurable axis motor acceleration
  • Backlash compensation
  • Gcode backplot checks work envelope
  • G code backplot shows true cutter comp moves
  • Vary part backplot speed and pause
    w/ G-code line display
  • Real Time Part Graphics, shows tool position while running
  • Optional Stops
  • Subprograms and Macros
  • Engraving compatible (short vector g code no problem)
  • Threadmilling (Mill)
  • Run in Inch or MM mode
  • Tool Library
  • Long part names
  • Drilling and Tapping Cycles
  • USB and Network Drive Compatible
  • Keyboard Operator Control panel emulator,
  • Xkeys USB control pad compatible
  • Tool Life Management
  • Ballscrew mapping table
  • Control relays and contactors thru Manual or Program control
  • User configurable custom DIY M-codes
  • Canned Cycles
  • Constant surface speed (lathe)
  • Threading (lathe)
  • Profiling with auto cleanout (lathe)
  • Lathe canned cycles (thread, groove, chamfer, cutoff,turning diameter and end face,
  • Scale input for DRO positional display of a manual axis
  • X/Y axis Deskew
  • Coordinate System Rotation
