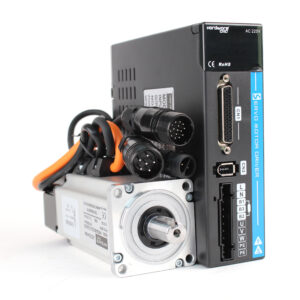

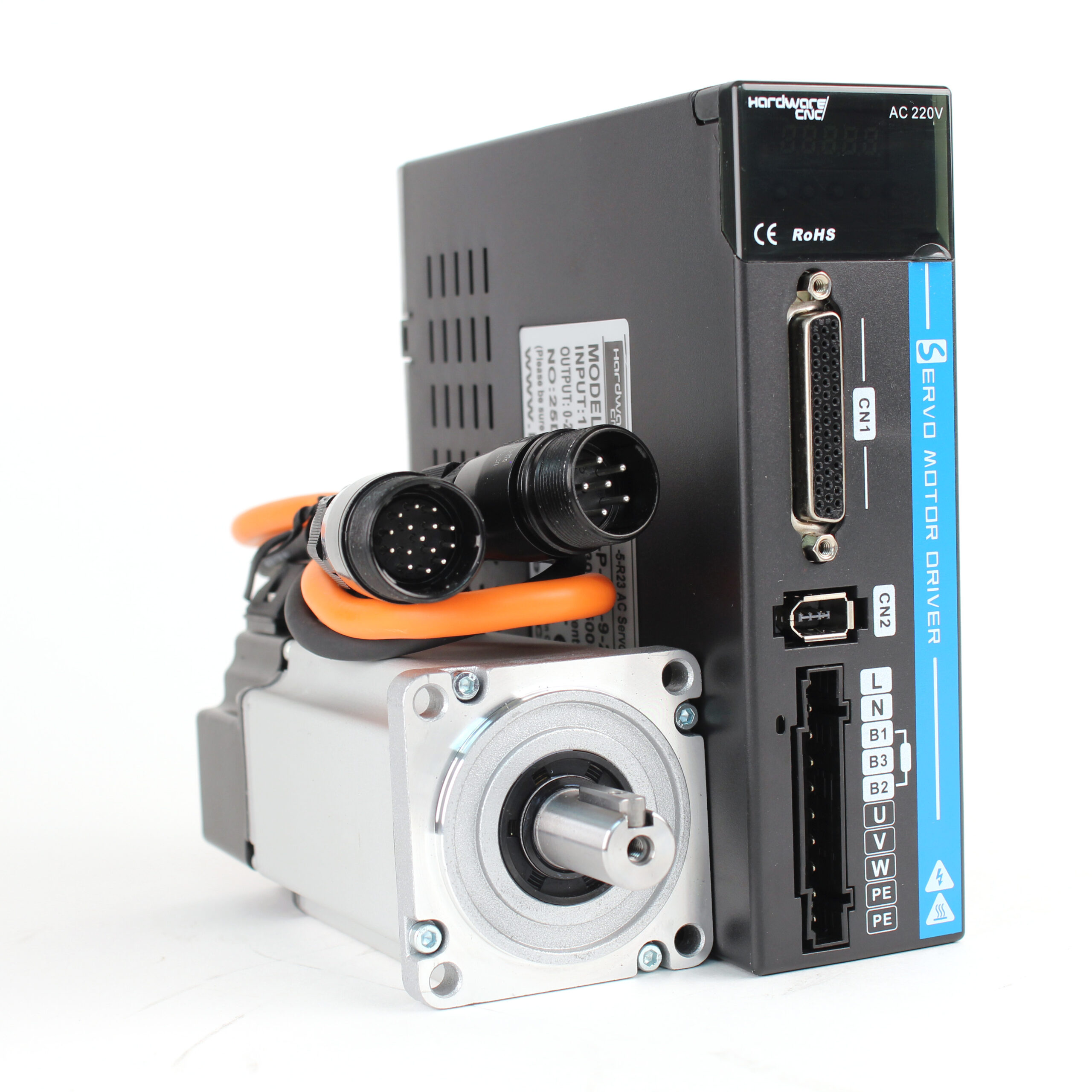

Servo set 0.6Kw 60ST ELS 230V + 5M cables IP68 (23bit absolute encoder)

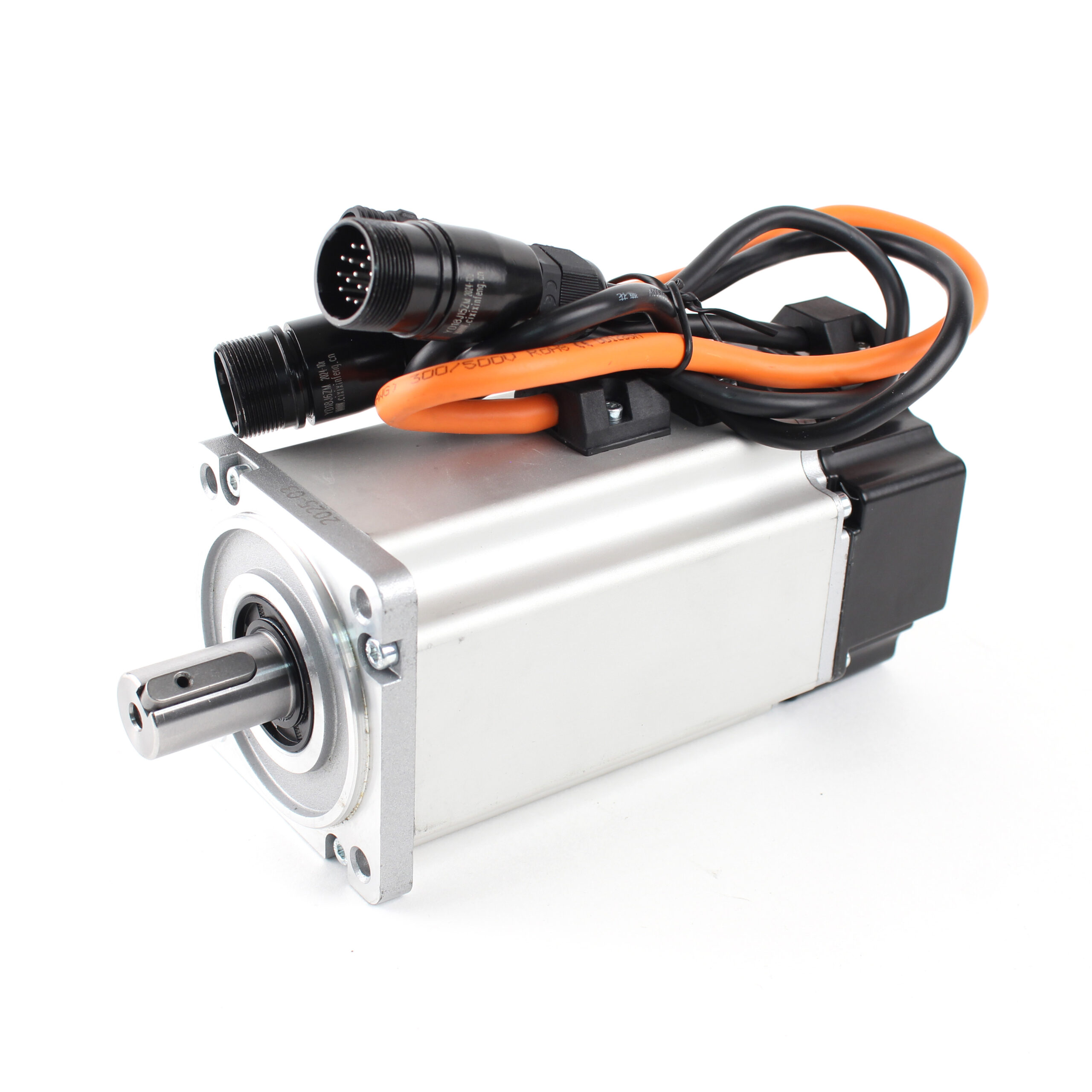

The 60 series AC servo motor contains 0.6KW power, the motor is a 5 pole motor, these motors have more torque at low speed and are therefore also more accurate. The motor uses the Japanese Tamagawa 23bit absolute encoder, suitable for industrial machines.

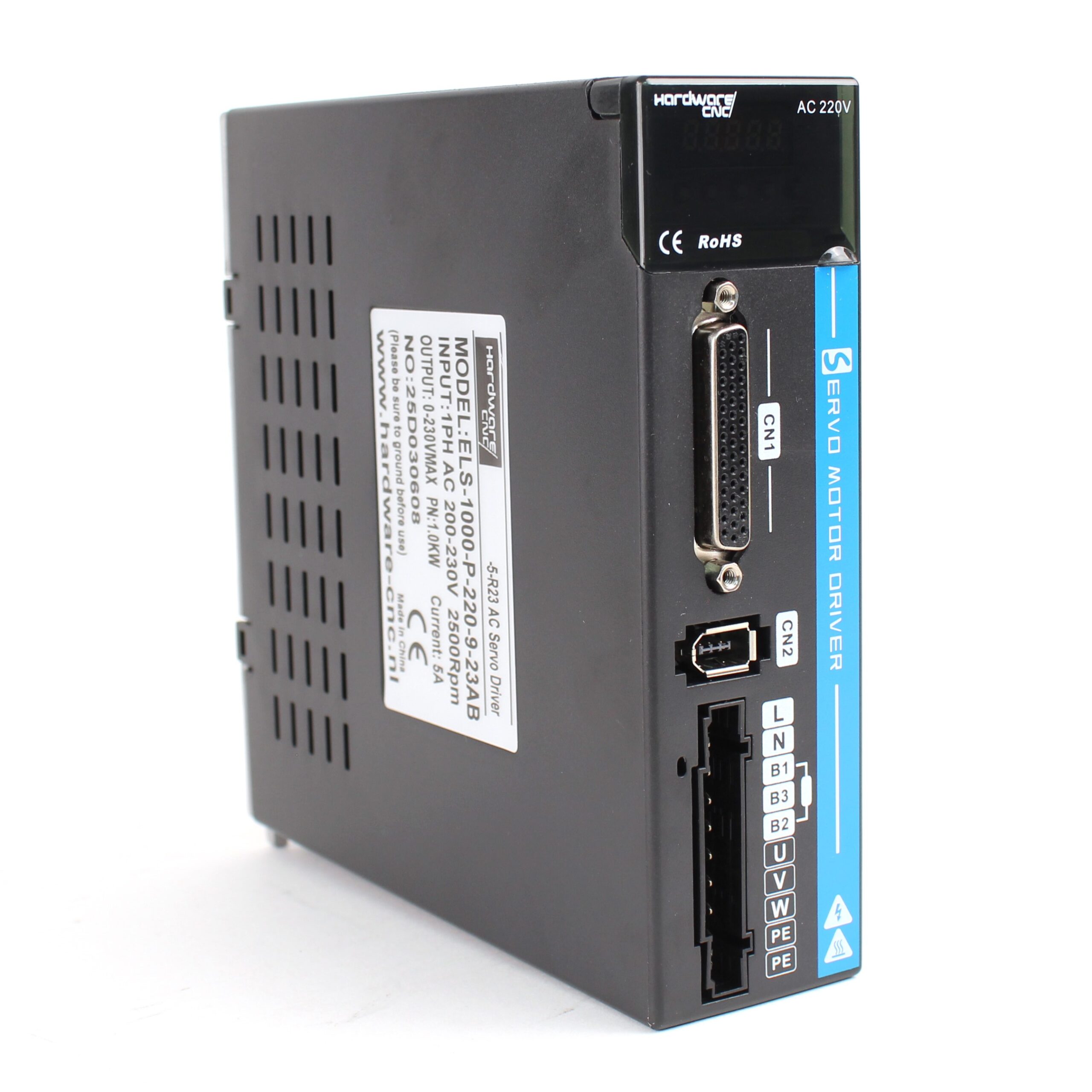

The servo driver from the ELS series has a 23-bit encoder, this corresponds to 8,388,608 pulses per revolution, which significantly improves the positioning accuracy of the motor and can make the motor more stable at low speeds. The driver is equipped with automatic tuning if necessary and has a built-in notch filter.

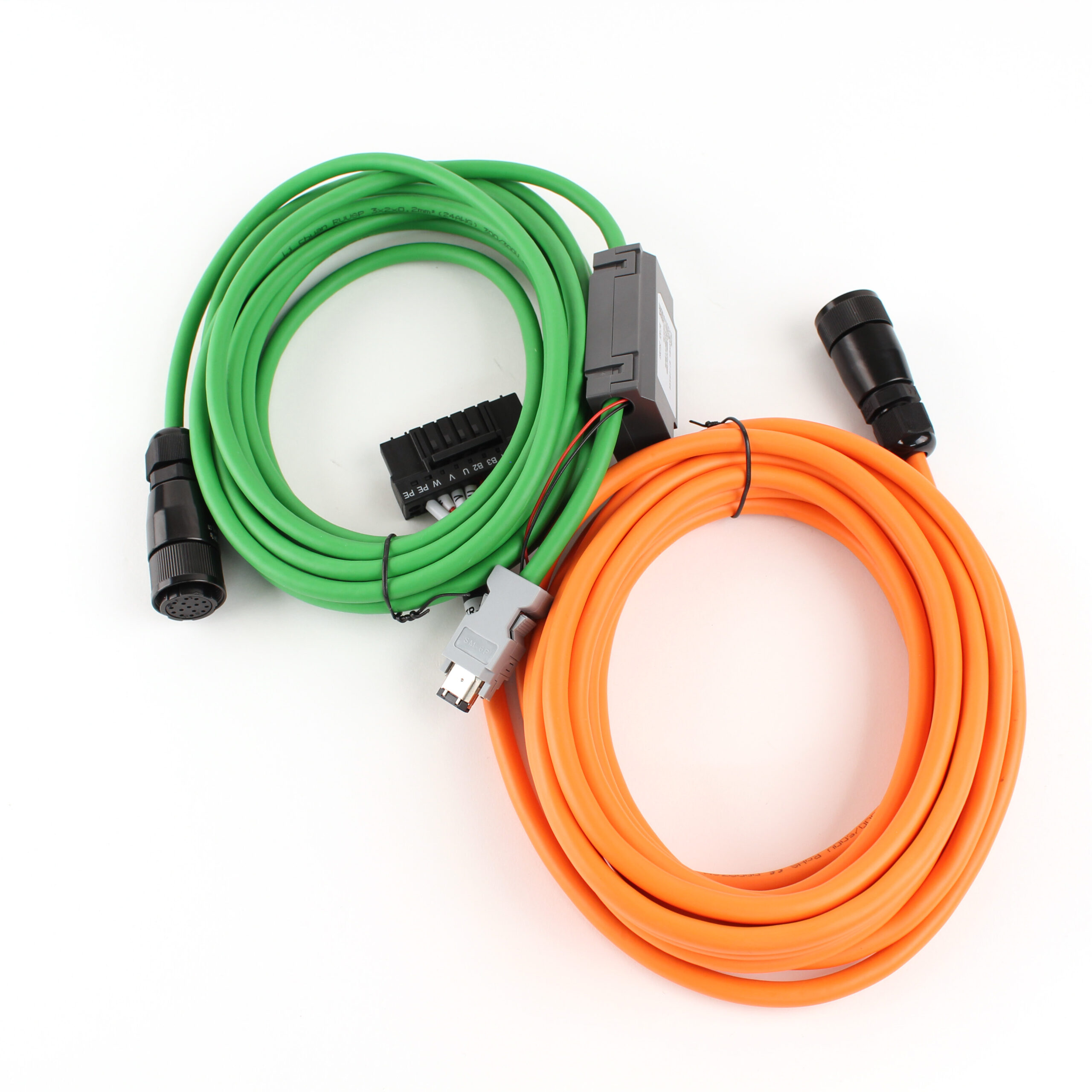

This set is plug and play, making it very easy to install. Both the motor and encoder cables are double shielded and suitable for cable chains. Both cables can be shortened.

Specifications:

• Input voltage: 220-230 VAC
• Pulse form: PUL/DIR and CW/CCW, A/B double pulse and analog 0/10V
• Modbus Support: yes, RS485 RTU protocol
• Pulse frequency: 0~1Mhz
• Plug & Play
• Outputs: 6x (programmable)
• Inputs: 8x (programmable)
• Analog Inputs: 2x
• High speed encoder feedback and open collector Z signal
• Built-in Braking Resistor
• With protection functions such as overvoltage, overcurrent, tracking error out of tolerance, etc

Included:

1. 0.6Kw servo motor 23bits absolute encoder (5 pole)
2. ELS driver
3. 5 Meter Encoder cable IP68 (dubbel shielded and suitable for cable chain)
4. 5 Meters Motor cable IP68 (dubbel shielded and suitable for cable chain)
5. Manual

Manual:

ELS Series Servo User Manual V4.PDF
