4x bearing in Spindle motor!

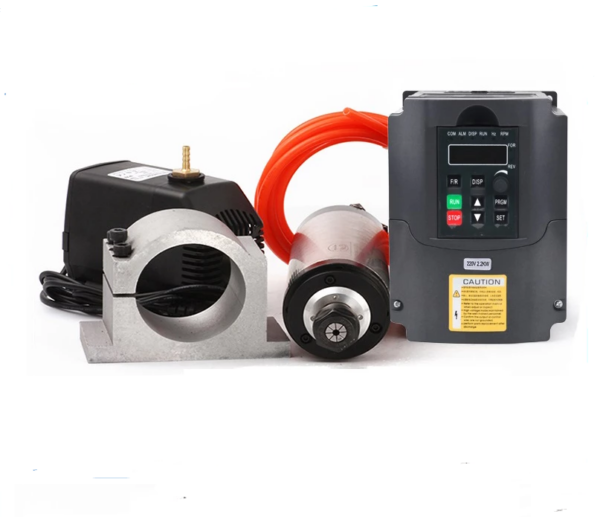

Package Content：
1.CNC High Speed 2.2KW water cooled / Spindel motor
2.2.2KW 220V VFD
3.80mm Bracket
4.Pump
5.ER20
6.Pipe
3 months warranty on sets

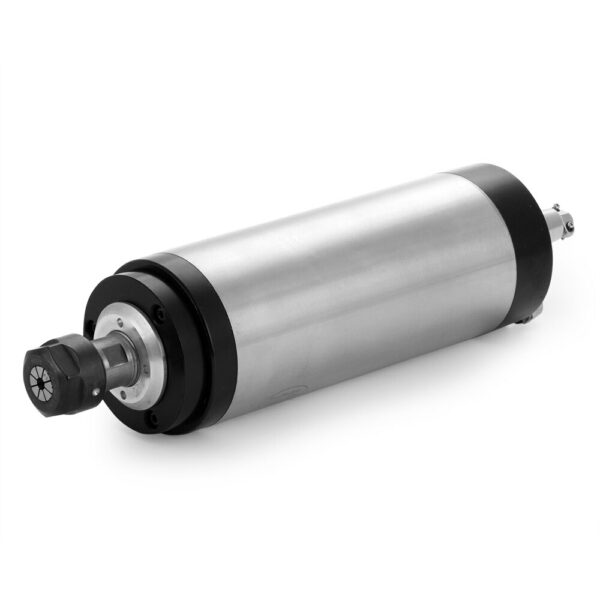

Motor Specs:
Specification: Φ80mm x Length:214mm
Power: 2.2 KW
Voltage: 220V~250V
Frequency: 400 Hz
Speed: 8000-24000 R/min
Water Cooling
ER20
Runout off: less than 0.005mm
Regelaar VFD Specs:
Series HY inverters
Control Mode SPWM
Input Power 230V class：220±15%
5-Digits Display & Status Indicator Lamp
Displaying frequency, current, revolution, voltage, counter, temperature, FOR or REV rotation, and fault, etc.
Communication Control RS-485
Working Temperature -10~40℃
Humidity 0-95% Relative Humidity（without dew）
Vibration Below 0.5G
Frequency Control Range 0.1~400.0Hz
Accuracy Digital: 0.1%（-10~40℃）; Analog: 0.1% （25±10℃）
Setting Resolution Digital: 0.1Hz; Analog: 1‰ of max. Operating frequency
Output Resolution 0.1Hz
Operator Setting Method Press directly ← ∧ ∨ to set.
Analog Setting Method External Voltage 0-5V，0-10V，4-20mA，0-20mA.
Other Functions:
Frequency lower limit, starting frequency, stopping frequency, three skip frequencies can be respectively set.
Torque Control:
Torque increase settable by max. 10.0%. The starting torque can reach 150% at 1.0Hz.
Multi-Inputs:
6 multi-function input terminals for 8–speed steps control, program operation, switching of 4-speed Ramp, UP/DOWN function, counter, external emergency stop and other functions.
Multi-Outputs:
5 multi-output for displaying of running, zero speed, counter, external abnormity, program operation and other information and warnings.
Other Functions:
Auto Voltage Regulation（AVR）, Decelerating Stop or Coasting Stop, DC Braking, Auto Reset and Restart, Frequency Track, PLC Program Control, Traverse Control,Drawing Control、Auto Energy Saving, Carrier Adjustable (Up to 20KHz), etc.

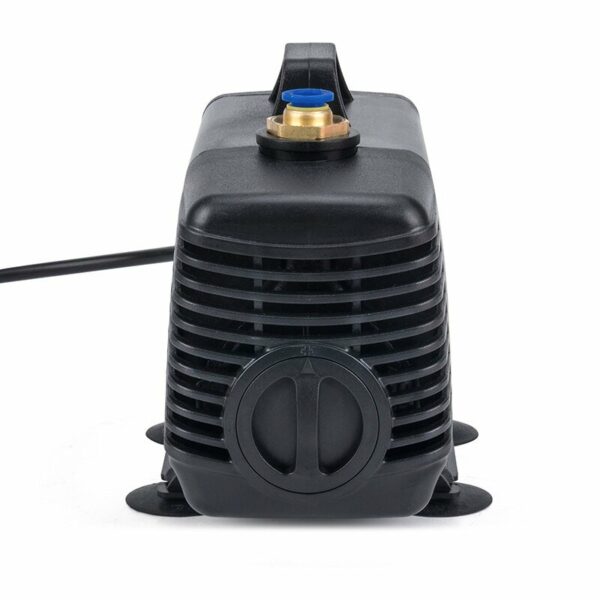

water-pump：
1.Product parameters:
2.Head: Max 3.2M ;
3.Power: 75W ;
4.Flow: 3000 L/H ;
5.Voltage: 220V ~ 240V FL-PLUG-US;
6.Dimensions: L 150mm *W 80mm * H 140mm;
7.Tap outside diameter: 6mm
