MyPlasm CNC System PROMA (set)
€419,00
In stock

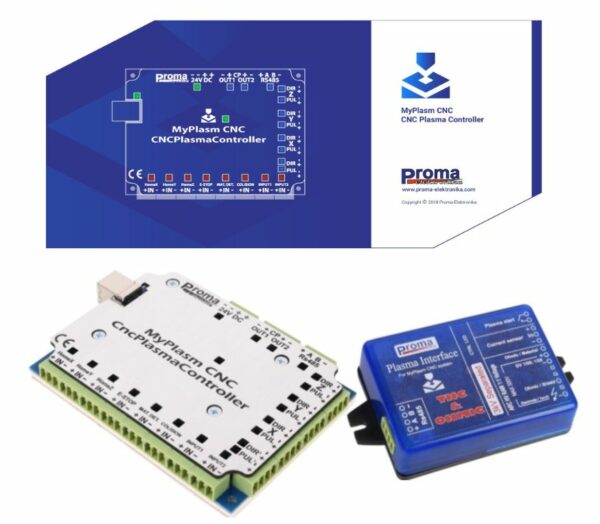

Price includes:
- CNC controller (CNC motherboard)
- Plasma interface (THC + OHMIC)
- HQ USB cable 1.5m
- Software: Download
Manual:
Basic functions of the program / controller
- Max working range of the machine: No restrictions
- Minimum pulse width Step: Auto
- Max STEP signal frequency: 350kHz
- Integrated THC Height Adjuster: Yes
- Torch anti-dive function: Yes
- Material detection function: Yes, Touch / Floating head
- Collision sensor support: YES
- Types of accepted files: DXF, PLT (hpgl), G-Codes (.tap)
- Integrated CAM module: Yes, MyMini CAM
- Automatic Wen object recognition. Outside : YES
- Path Advance Analysis: YES
- Cutting parameters database: YES,
- Correction of the design angle to the material: YES
- Operation via the GamePad controller: YES
- Can be cut from anywhere: YES
- The possibility of cutting from the end: YES
- Supported CNC controllers: MyPlasm CNC
- Support for 3rd party controllers and motherboards: NO
- Ability to work via LPT port: NO
- DXF, PLT or G-CODES import
- Automatic generation of paths with offset, entrances and exits
- The program can be used with an external CAM program
- Separate speed for holes
- Parameter database
- Correction of the design to the angle of material arrangement
- Soft and Hardware limits
- THC anti-dive features
- Game Pad controllable
- Material detection via touch system, floating head or both.

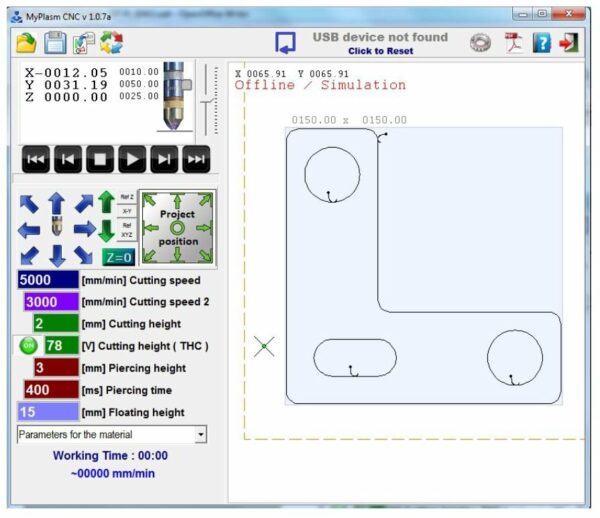

MyPlasm CNC System
A very simple control system for CNC Plasma Cutting Machines intended for non-professional users who do not know G-codes, does not require knowledge of advanced control programs, CAM programs, etc. The main idea of the program is simplicity of use and a minimum level of knowledge of the operator, who can cut an element directly with a few clicks. from a drawing or draw simple shapes directly in the free MyMini CAD module.
The system cannot be compared with competing professional control systems that offer much greater possibilities but are at the same time much more complicated. This product is just very simple for simple projects, if you require professional or unusual solutions this is not the product for you.
- MyPlasm CNC System user manual: PL EN
- Software Download (Full Free Version Win 7/8/10 32/64b)

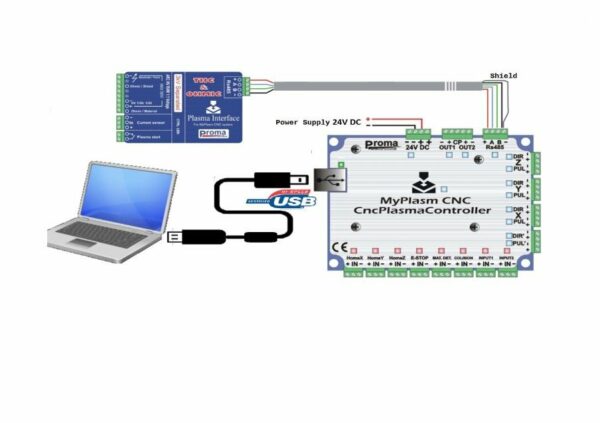

- *sample connection diagram: Download PDF
* The connection diagram is always individual for your system, the presented diagram is only an example.
