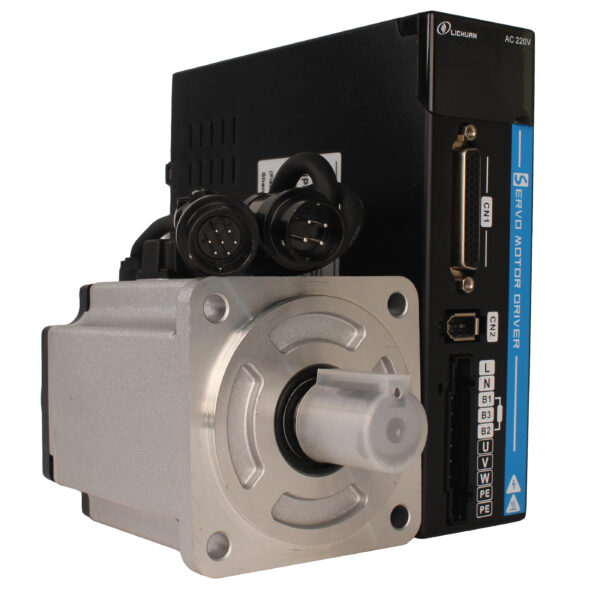

The 80 series AC servo motor contains 0.75KW power and 7.17Nm torque, the motor is a 5-pole motor, these motors have more torque at low speed and are therefore more accurate. the motor uses the Japanese Tamagawa 17bit encoder and cable, suitable for industrial automation equipment.
The A5 series servo driver has a 17-bit encoder, which is equivalent to 131072 pulses per revolution, which greatly improves the positioning accuracy of the motor and can make the motor more stable at low speeds.
This set is plug and play making it very easy to install. Both the motor and encoder cables are made for cable chains. Both cables can be shortened.
Included:
- 0.75Kw servo motor (5 pole)
- A5 driver

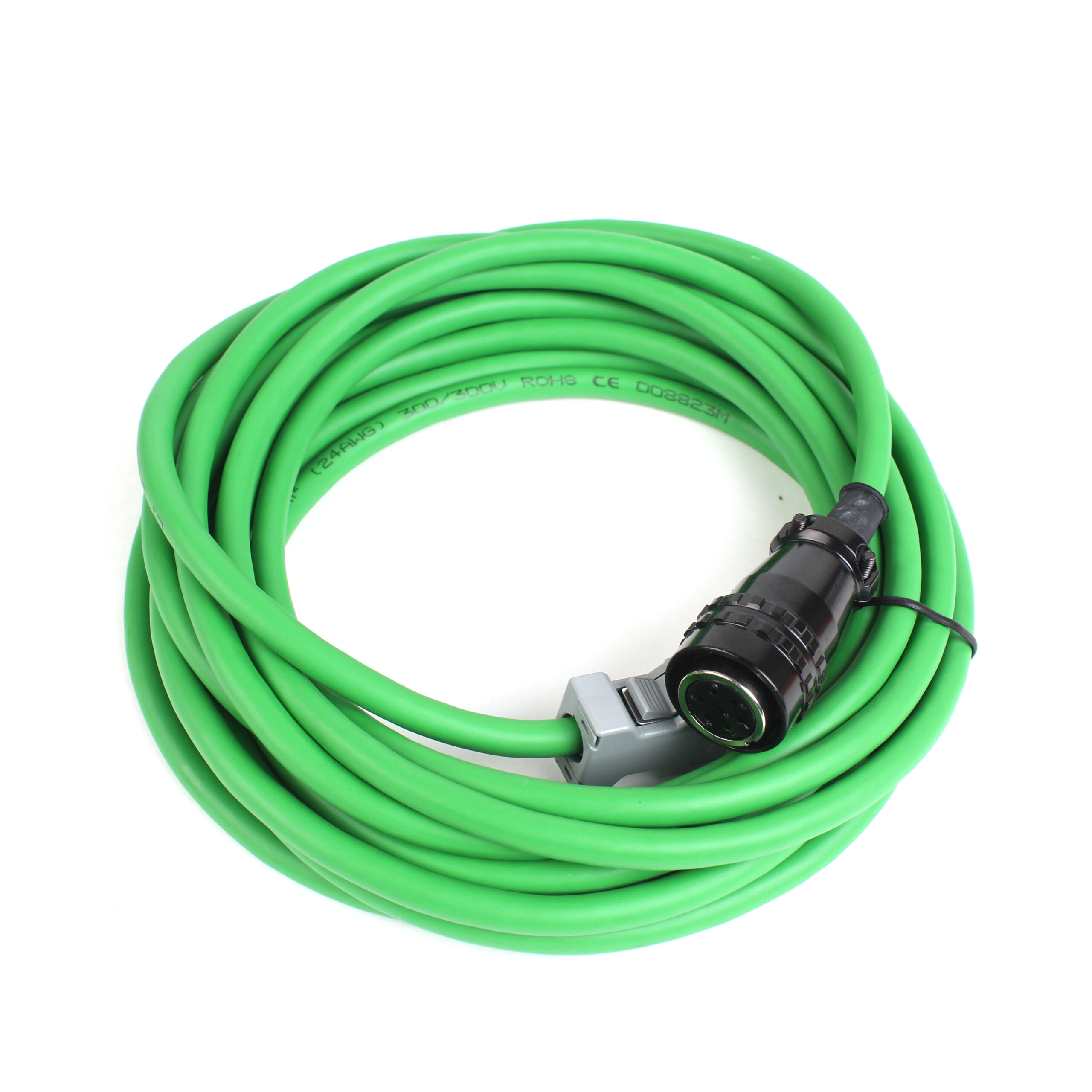

- 5 Meter Encoder cable (cable chain)

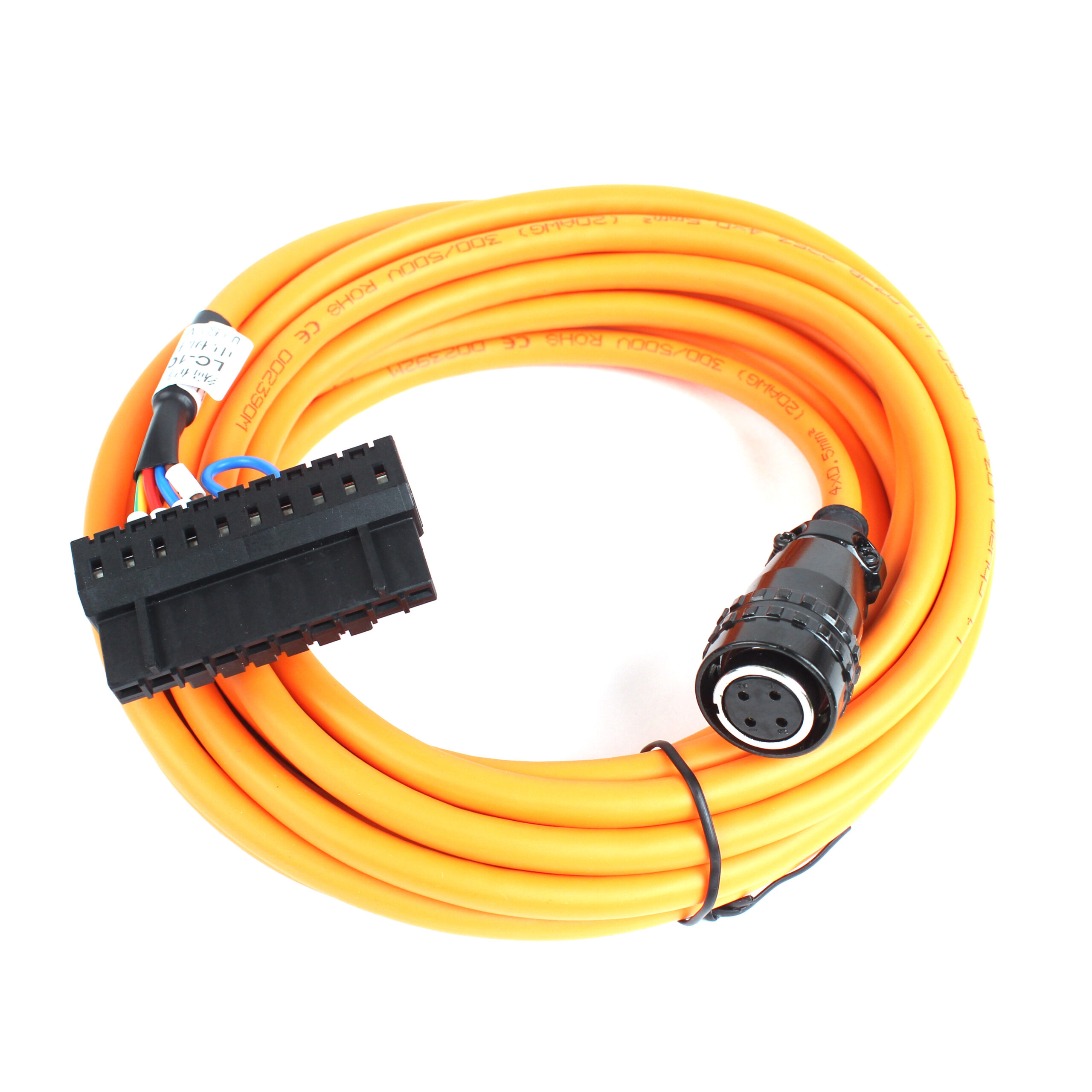

- 5 Meters Motor cable (cable chain)
- Manual
Manual:
A5 servo driver user manual 202302 (nieuw 13-2-2023)
