NEMA 23 Closed Loop 3.0Nm set + 5M cables IP68 (3 phase)
€99,95
Description
Our high speed 3 phase closed loop sets are supplied with drivers that are set to the motors, so no tuning is required. The motors and cables are supplied with IP68 connectors, the cables are also suitable for cable chains and both the encoder cable and motor cable are double shielded.
Specifications Driver:
- Voltage input range: DC20V ~ 50V(generally connected to 48VDC)
- Statistic and dynamic currents can be set within 0~7A
- External digital debugging panel, current and subdivision can be adjusted
- Subdivision adjustment range: 200~51200
- Pulsmodes: PUL/DIR and CW/CCW
- max pulse response frequency: 200KHZ (5VDC-24VDC)
- Dynamic current control largely decreases heat generation and vibration noise of motor
- With protection functions such as overvoltage, overcurrent, tracking error out of tolerance, etc
- Plug & Play, no tuning required for most applications
Included:

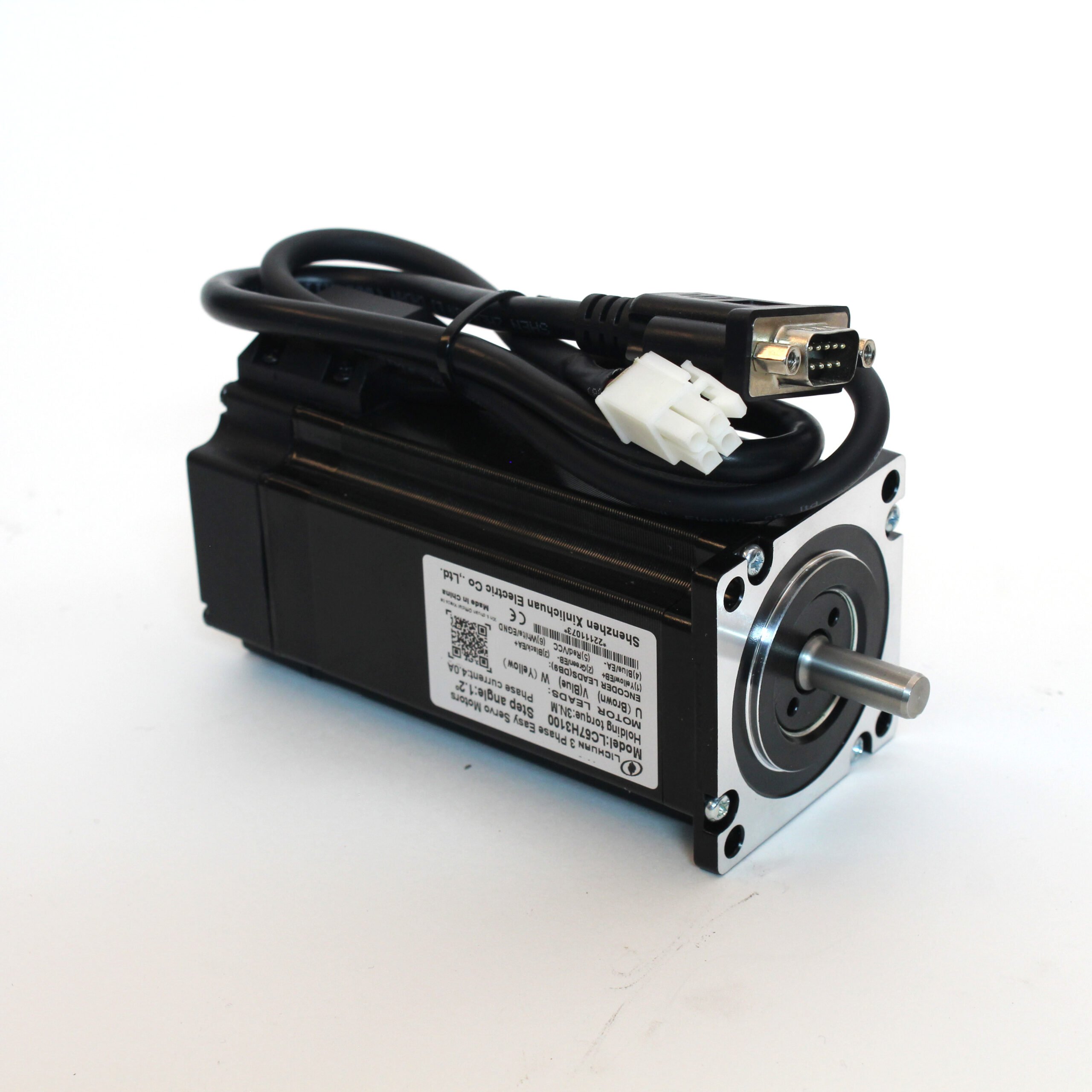

- 3Nm NEMA 23 Closed Loop motor
- CL-D507E driver

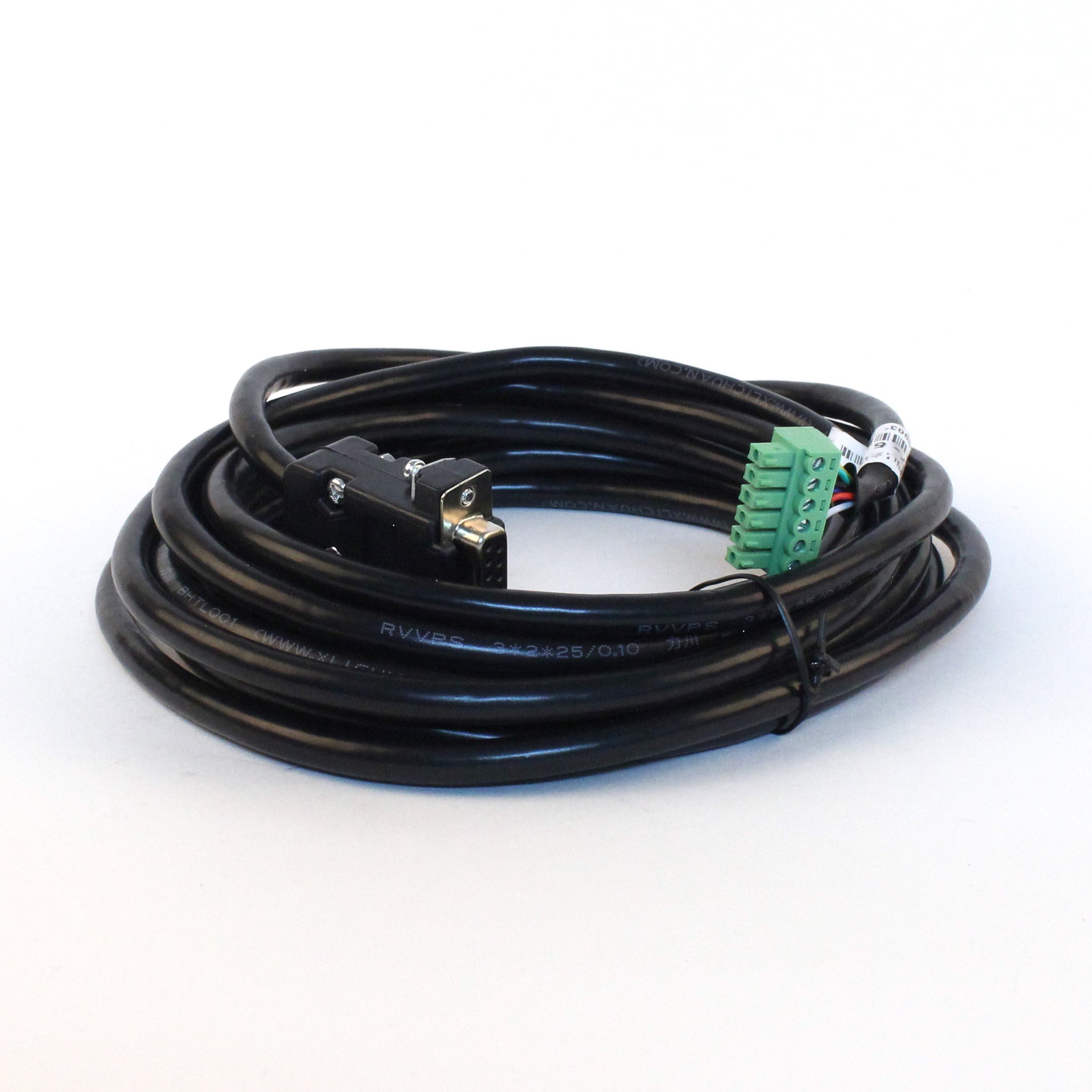

- 5 Meter encoder cable IP68 connector (shielded and high flex for cable chains)

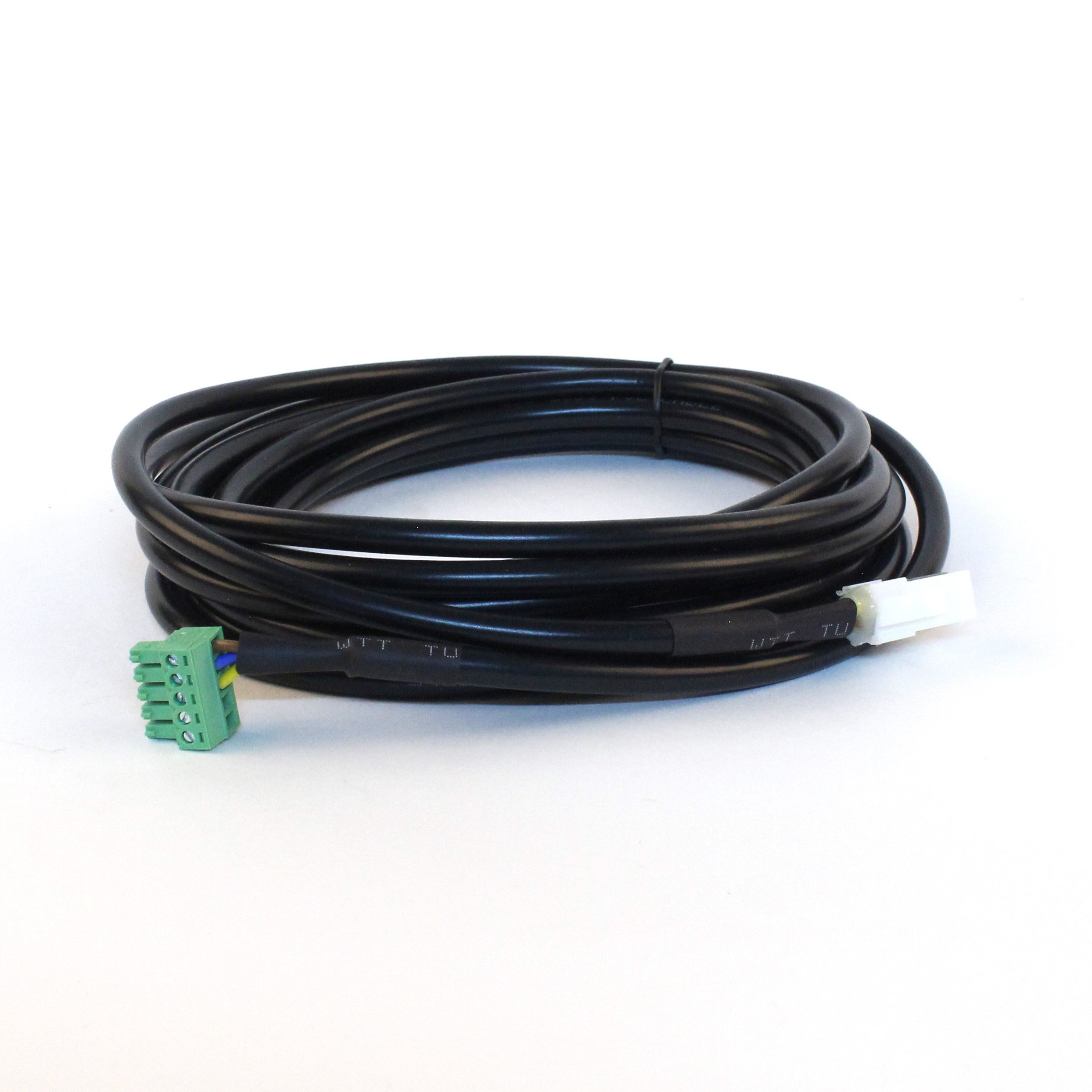

- 5 Meter motor cable IP68 connector (shielded and high flex for cable chains)
