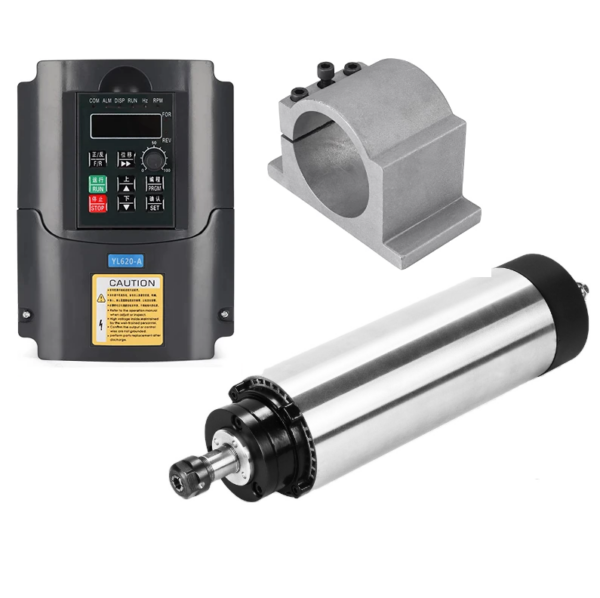

1.5kW 220V Spindel set:
– Motor
– Freq. regelaar

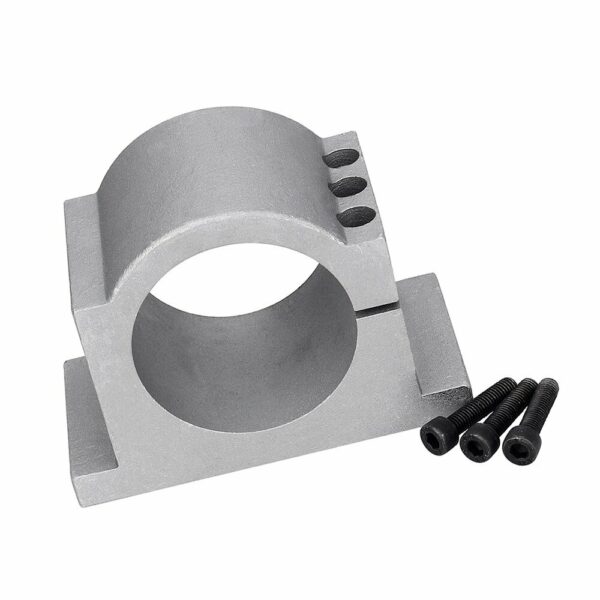

– Motorsteun
===> De motorsteun kan voorzien worden van een gaten patroon. Neem contact met ons op hiervoor. info@hardware-cnc.nl
Wij geven 3 maanden garantie op deze sets.
SPECS:

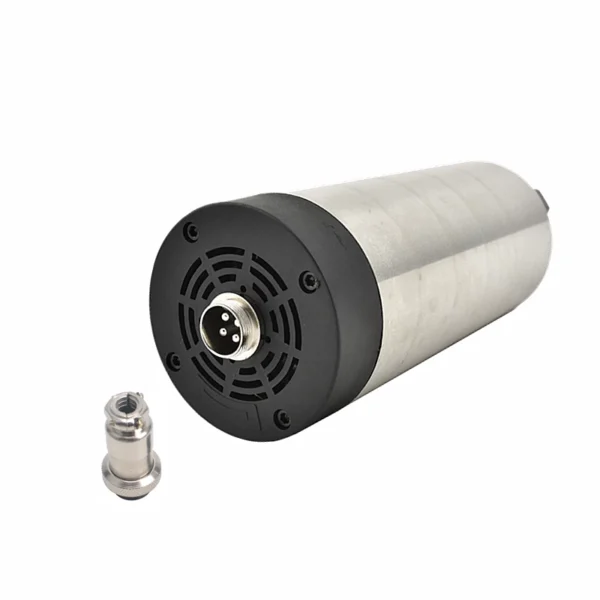

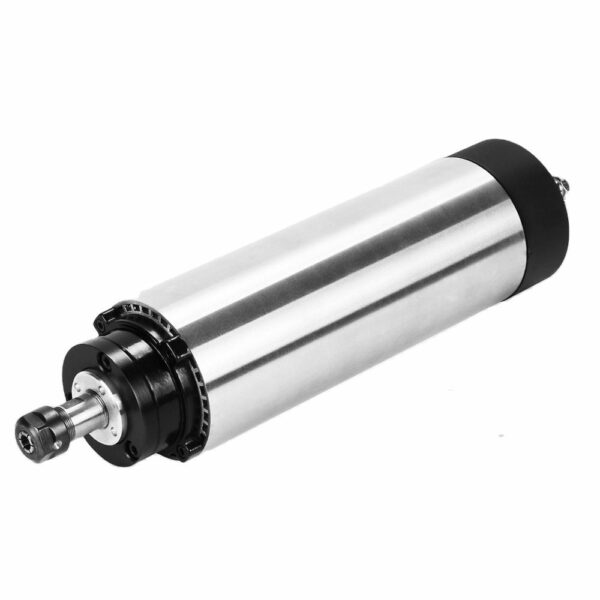

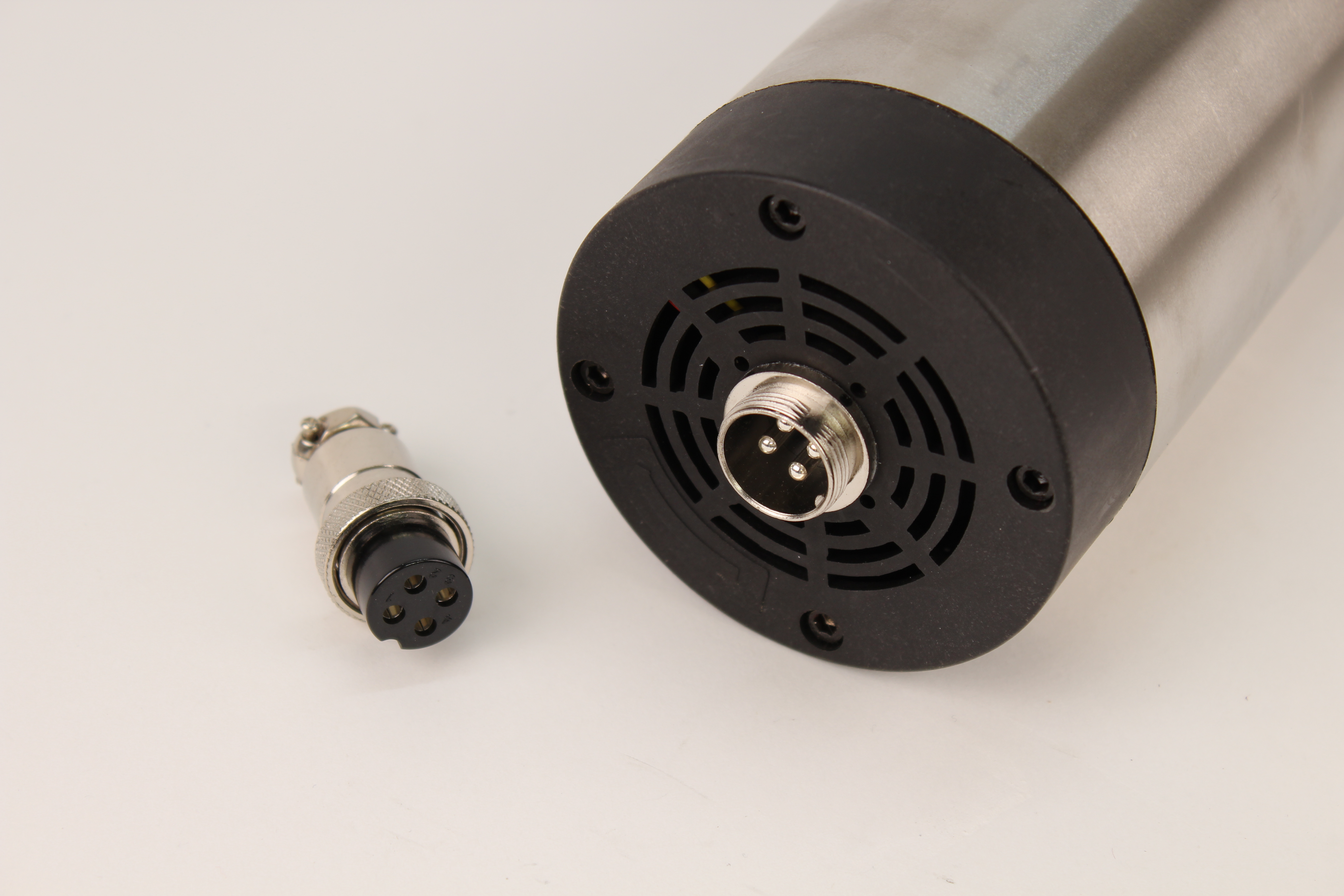

1.5KW Spindle Motor Specification:
- Specification: Φ80mm x Length:188mm (including air interface: Φ80mm X 203mm)
- Power: 1.5 KW
- Voltage: AC220V
- Frequency: 0-400 Hz
- Max Rotation speed: 24000 R/min
- Chuck: ER11 collet chuck
- Cooling mode: air cooling mode
- Coaxiality: 0.025mm
- Radial runout: 0.01mm
- The speed of adjustment: 0-24000 stepless speed control can be achieved through the inverter to adjust the output voltage and operating frequency,
- Lubrication: high temperature grease lubrication

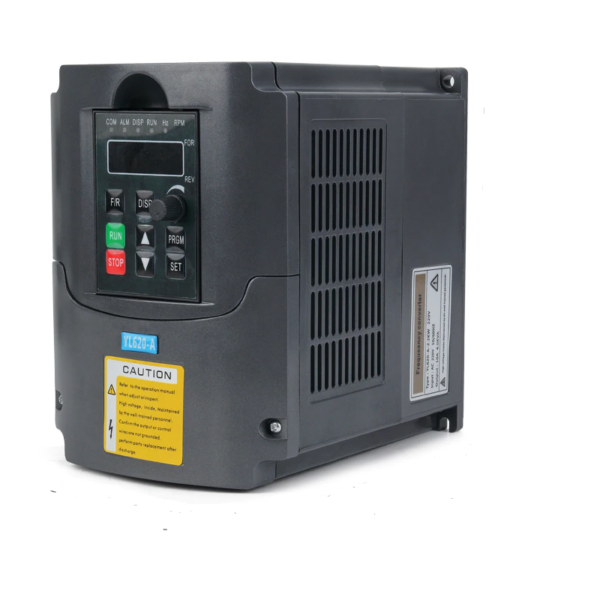

1.5KW Inverter Specification:
| Series | 1.5KW/220V | |
| Inpute Specification | Phase | 1 or 3 phase as you like |
| Voltage (V) | 220V±15% | |
| Frequency (HZ) | 47-63Hz | |
| Output
Specification |
Phase | 3 phase |
| Voltage (V) | 208-240V AC (analogous to Input Voltage) | |
| current(A) | 7.0A | |
| Frequency (HZ) | 0.1-400HZ | |
| Capacity（KVA） | 2.8KVA | |
| Control Mode | SPWM | |
| Input Power | 220V class：220±15%(we also provide 380V item, if you need,please contact us) | |
| 5-Digits Display & Status Indicator Lamp | Displaying frequency, current, revolution, voltage, counter, temperature, FOR or REV rotation, and fault, etc. | |
| Communication Control | RS-485 | |
| Working Temperature | -10~45℃ | |
| Frequency Control | Accuracy | |
| Setting Resolution | ||
| General Control | Output Resolution | Digital: 0.1%（-10~40℃）; Analog: 0.1% （25±10℃） |
| Operator Setting Method | Digital: 0.1Hz; Analog: 1‰ of max. Operating frequency | |
| Analog Setting Method | 0.1Hz | |
| Other Functions | Press directly ←∧∨ to set. | |
| Ramp Control | External Voltage 0-5V，0-10V，4-20mA，0-20mA. | |
| V/F Curve | Frequency lower limit, starting frequency, stopping frequency, three skip frequencies can be respectively set. | |
| Torque Control | Selectable 4-speed steps ramp-up and -down time (0.1-6500s). | |
| Protection Functions | Multi-Inputs | Set V/F curve at will. |
| Multi-Outputs | Torque increase settable by max. 10.0%. The starting torque can reach 150% at 1.0Hz. | |
| Other Functions | 6 multi-function input terminals for 8–speed steps control, program operation, switching of 4-speed Ramp, UP/DOWN function, counter, external emergency stop and other functions. | |
| Overload Protection | 5 multi-output for displaying of running, zero speed, counter, external abnormity, program operation and other information and warnings. | |
| FuseProtection | Auto Voltage Regulation（AVR）, Decelerating Stop or Coasting Stop, DC Braking, Auto Reset and Restart, Frequency Track, PLC Program Control, Traverse Control, Drawing Control、Auto Energy Saving, Carrier Adjustable (Up to 20KHz), etc. | |
| Over-voltage | Electronic relay protection motor drive
Drive（for constant torque150%/1 min. for the kinds of fan 120%/1min.） |
|
| Under-voltage | When the fuse breaks , the motor will stop. | |
| Restart After Instant Stop | 220V class：DC Voltage ＞400V
We also stock 380V item, contact us about stock 380V class：DC Voltage ＞800V |
|
| Stall Protection | 220V class：DC Voltage ＜200V
We also stock 380V item, contact us about stock 380V class：DC Voltage ＜400V |
|
| Output Short Circuit | Restart with Frequency Track afterInstant Stop | |
| Other Functions | Stall protection in ramp operation | |
| Electrical circuit protection | ||
| Size (L*W*H): | 168*124*162 | |
